  • Welcome To Computer Graphics Lab

    I welcome all of my beloved students to the Computer Graphics course Lab session!!!.Computer Graphics is the major field of Computer Science & Engineering, which is the order of originating images with the computer. It's a core technology in digital photography, video games, film, cellphone & computer displays as well as many specialized applications.  Hope our journey will be nice together. Enjoy your learning with the flow.

    Regards,
    Instructor: SAIMA AFRIN


    Instructor : Saima Afrin
    Designation: Lecturer
    Email: saima.cse@diu.edu.bd
    Office: Room no 505, building- AB4, Daffodil International University, Permanent Camous, Ashulia.

    Course Rationale

    Computer Graphics and Design - Foundation Level 2 provides applied learning opportunities for learners with an interest in computer graphics who are looking to foster a career within design-based industries and/or wish to prepare for further study in Computer Graphics and Design Level 3.

    Course Objective

    It allows learners to develop a practically based understanding of form and functional design contexts using computer graphics and associated digital technologies. Computer Graphics and Design - Foundation Level 2 engages learners in solving design challenges and presenting their ideas or solutions as digital graphic solutions. Design projects allow learners: to demonstrate their skills and understandings of design principles and processes; to understand problems; propose possibilities; and to develop creative solutions.

    Course Outcomes (CO’s)

    CO1

    Able to demonstrate effective OpenGL programs to solve graphics programming issues including different shapes.

    CO2

    Able to implement Line Drawing Algorithm using DDA and Bresenham’s Algorithm.

    CO3

    Able to implement Circle Drawing Algorithm using Mid Point Algorithm.

    CO4

    Able to implement 2D and 3D transformation

    CO5

    Able to implement colour modelling, shading and animation.

    Grading Scheme

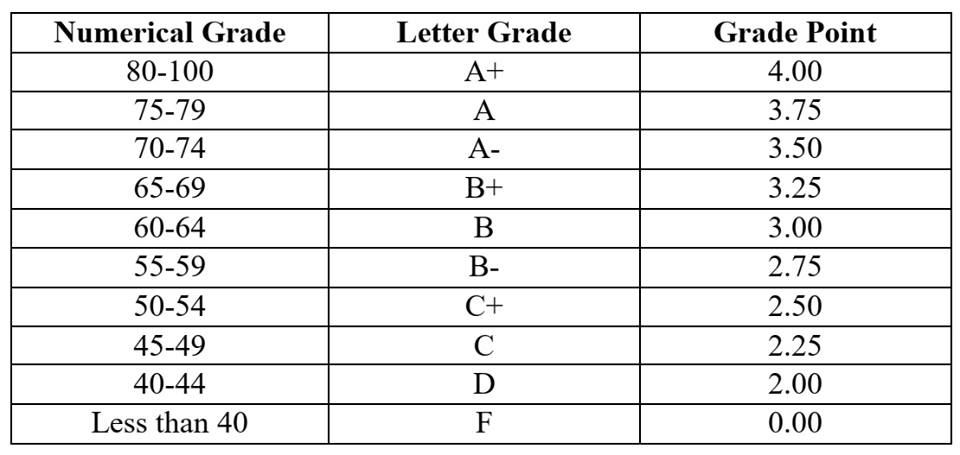

    Attendance: 10%
    Lab Performance: 25%
    project: 25%
    Final Exam: 40%

    Grading System


    • resource icon
      Text Book File

      Text Book for Class Discussion:  OpenGL® Programming Guide, Seventh Edition Dave Shreiner The Khronos OpenGL ARB Working Group

    • resource icon
      Course Outline File

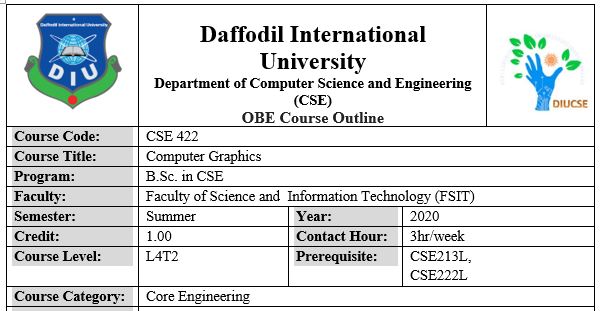

       Course Outline based on OBE

  • Week 1: Introduction

    Topics for discussion

    Fundamental knowledge about OpenGl, installation and working with some basic built in functions.

    Expected Learning Outcome:

    • Able to demonstrate effective OpenGL programs to solve graphics programming issues including different shapes.
    • Able to use OpenGL with CodeBlocks and  to implement computer graphics course using OpenGL.

    Expected Skills:

    a.  Gathering knowledge about OpenGL
    b.   Clear idea about OpenGL for answering OpenGL related questions.

    Tools Required:

    •  CodeBlocks
    •  OpenGL and GLUT using CodeBlocks.


  • Week 2: Explore with different output Primitives

    Topics for discussion

    Fundamental knowledge about OpenGl: Built in Function details description, Working with different object shapes by changing colors.

    Expected Learning Outcome:

    • Able to demonstrate effective OpenGL programs to solve graphics programming issues including different shapes.
    • Able to appreciate the knowledge along axis (X,Y).

    Expected Skills:

    a.  knowledge about C/C++ programming
    b.   Clear idea about OpenGL

    Tools Required:

    •  CodeBlocks
    •  OpenGL and GLUT using CodeBlocks.

  • Week 3: Square, Triangle


    Expected Skills:

    a.  knowledge about C/C++ programming
    b.  Clear idea about OpenGL

    Tools Required:

    •  CodeBlocks
    •  OpenGL and GLUT using CodeBlocks.

    • url icon
      Lecture Video (Square, Triangle) URL
      Students must
      Mark as done


    • url icon
      Class (PC-A) Rectangle triangle URL
      Students must
      Mark as done


    • assign icon
      Task1(PC-D): Introduction to rectangle & triangle Assignment
      Students must
      Make a submission

      Dear Learners,

      It's time to show your spark.

      Follow the attached picture and draw it by using openGL. You are allowed to add more additional things if needed.

      Submission GiuideLine:

      • Submit .txt file of your code
      • Snapshot of the output

      N.B. Do not submit .ZIP or.RAR file.

    • assign icon
      Task1(PC-A): Introduction to rectangle & triangle Assignment
      Students must
      Make a submission

      Dear Learners,

      It's time to show your spark.

      Follow the attached picture and draw it by using openGL. You are allowed to add more additional things if needed.

      Submission GiuideLine:

      • Submit .txt file of your code
      • Snapshot of the output

      N.B. Do not submit .ZIP or.RAR file.

    • assign icon
      Task 2(PC-D): try yourself Assignment

      Dear Scholar,

      Draw a "Chess Board" by using opengl. Check the attachment . Enjoy your exploration.

      N.B: You can use "loop" concept with the pixel value to draw the same rectangle again again, it will be easier for you.

      Submission Guide Line:

      • Submit .txt file of your code
      • Snapshot of the output

      N.B. Do not submit .ZIP or .RAR file.


    • assign icon
      Task 2(PC-A): try yourself Assignment

      Dear Scholar,

      Draw a "Chess Board" by using opengl. Check the attachment . Enjoy your exploration.

      N.B: You can use "loop" concept with the pixel value to draw the same rectangle again again, it will be easier for you.

      Submission Guide Line:

      • Submit .txt file of your code
      • Snapshot of the output

      N.B. Do not submit .ZIP or .RAR file.


    • forum icon
      SHARE YOUR PROBLEMS Forum

  • Week 4: Polygon

    Expected Skills:

    a.  knowledge about C/C++ programming
    b.  Clear idea about OpenGL

    Tools Required:

    •  CodeBlocks
    •  OpenGL and GLUT using CodeBlocks.

    Submission Guide Line:

    • Submit .txt file of your code
    • Snapshot of the output

    N.B. Do not submit .ZIP or .RAR file


  • Week 7: Midterm Examination of Theory Course


  • Week 5: Project Discussion and project Sample

    Topics for discussion

    • Projects Discussion
    • Project ideas
    • Project Time Frame
    • Project Follow up
    • Project Presentation
    • Project Submission

    Expected Learning Outcome:

    •   Students will be able to implement the learning of graphics to visualize the real time problem.

    Expected Skills:

    a.  knowledge about C/C++ programming
    b.  Clear idea about OpenGL


  • Week 6: Circle draw and Algorithm Implementation

    Topics for discussion

    Circle Drawing Algorithm Implementation with matrix : Midpoint

    Expected Learning Outcome:

    •   Students will be able to implement circle algorithm with different transformation.
    •   Students will be able to draw a circle with center visualization.

    Expected Skills:

    a.  knowledge about C/C++ programming
    b.  Clear idea about OpenGL
    c.   Clear about Matrix

    Tools Required:

    •  CodeBlocks
    •  OpenGL and GLUT using CodeBlocks.


  • Week 8: 2D Implementation

    Topics for discussion

    2D implementation (Object Movement)

    Expected Learning Outcome:

    •   Students will be able to implement all the visualization of the output Primitives.
    •   Students will be able to implement two dimensional animation of any objects.

    Expected Skills:

    a.  knowledge about C/C++ programming
    b.  Clear idea about OpenGL
    c.   Clear about Matrix
    d. Clear idea about axis


  • Week 9: Review Exercises

    Review the contents from week 1 to week 9

    Project Followup

    Feedback from the instructor


  • Topic 11: Lab Assessment

    Lab Assessment

    Total Marks 10

    Syllabus:

    Theoretical concept of Opengl



  • Week 13: Final Lab Assessment


    • Lab Final Exam Assessment plan

    • assign icon
      Lab Final Question (PC-D) Assignment
      Students must
      Mark as done

      Question is given here.

      * Must be submit the drawn graph, otherwise you won't get proper marks

      *submit the screenshot of code (Full window), output and graph as pdf file

    • assign icon
      LAB FINAL (PC-A) Assignment
      Students must
      Mark as done

      Question is given here.

      * Must be submit the drawn graph, otherwise you won't get proper marks

      *submit the screenshot of code (Full window), output and graph as pdf file


  • week 14: Final Examination of Theory course
